RUNYI Hotline

0086-13861215152

產品中心  RUNYIMACHINERY

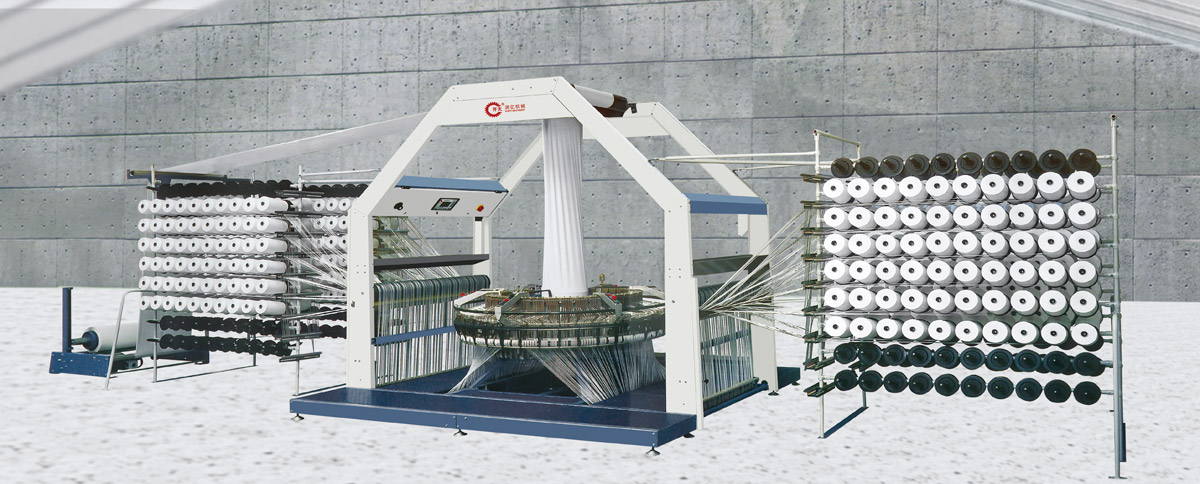

SYZ SERIES PLASTIC CIRCULAR LOOM
SYZ SERIES PLASTIC CIRCULAR LOOM

Moved picture on your mouse, magnifying the effect of visible product
  Advanced machinery structure system. The loom can adopts the most advanced cam structure "flat cam three-dimensional carve to Make the H.S driving arms moving together with heald belts", this kind of structure can make the loom running more steady, lower power consumption, lower noise, it reduced the production cost greatly.
  Perfect electric control. The electric control system adopts the centralized control of PLC, both loom rotary speed and taking-up speed are controlled by inverter, use PID-close-loop to coordinated the work of taking-up and rotary. With the advanced man-machine dialogue to show all menu data on the screen, the loom operation become more conveniently and reliably.

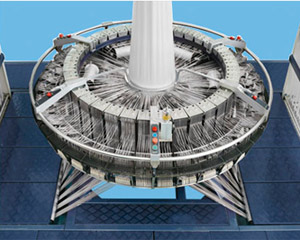

低中心平面凸輪結構

Plate cam structure with lower height
The brand new driving structure break the tradition to realize the weaving without oil,and the more safe food package,witch is suitable for most of the customers.

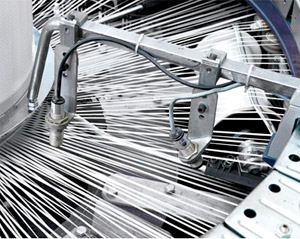

斷緯完緯檢測系統

Weft breakage & weft finished detection system
Weft breakage detection: flexible and reliable transmission of magnetic signal. Weft finish detection:detecting the color difference between the bobbin and weft,once the weft tape is nearly exhausted,the loom is stopped automatically.

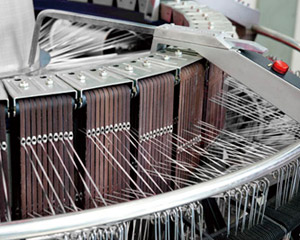

棕帶結構

Gromment band structure
The grommet band is made of the material with high strength and high tenacity,stable running and low noise.

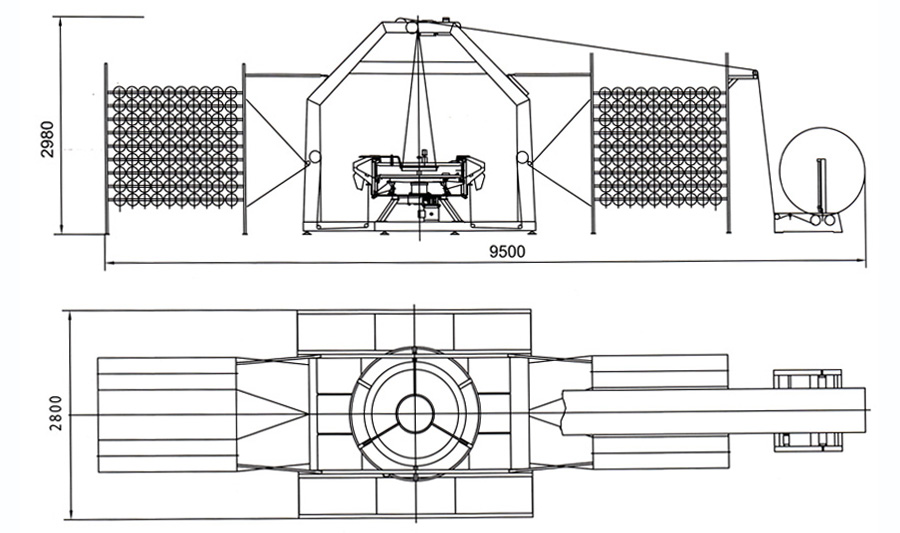

Product structure diagram:


Technical Parameters:

Type

SYZ-850×6S

SYZ-1300×6S

Fabric fold path

400~850mm

800~1300mm

Number of shuttles

6pcs

6pcs

Number warp

720pcs

1152pcs

Picking Number
900ppm 720ppm

Main motor power

3kW

4kW

The maximum diameter of the weft

105mm

105mm

The maximum diameter of the warp

160mm

160mm

*Jingwei tube length

230mm

230mm

**Jingwei tube diameter

38mm

38mm

Overall size

9500×2800×2980mm

13500×3000×3500mm

*/**Jingwei tube length and the inside diameter can be customized
Specification and dimensions are subject to change without prior notice.
